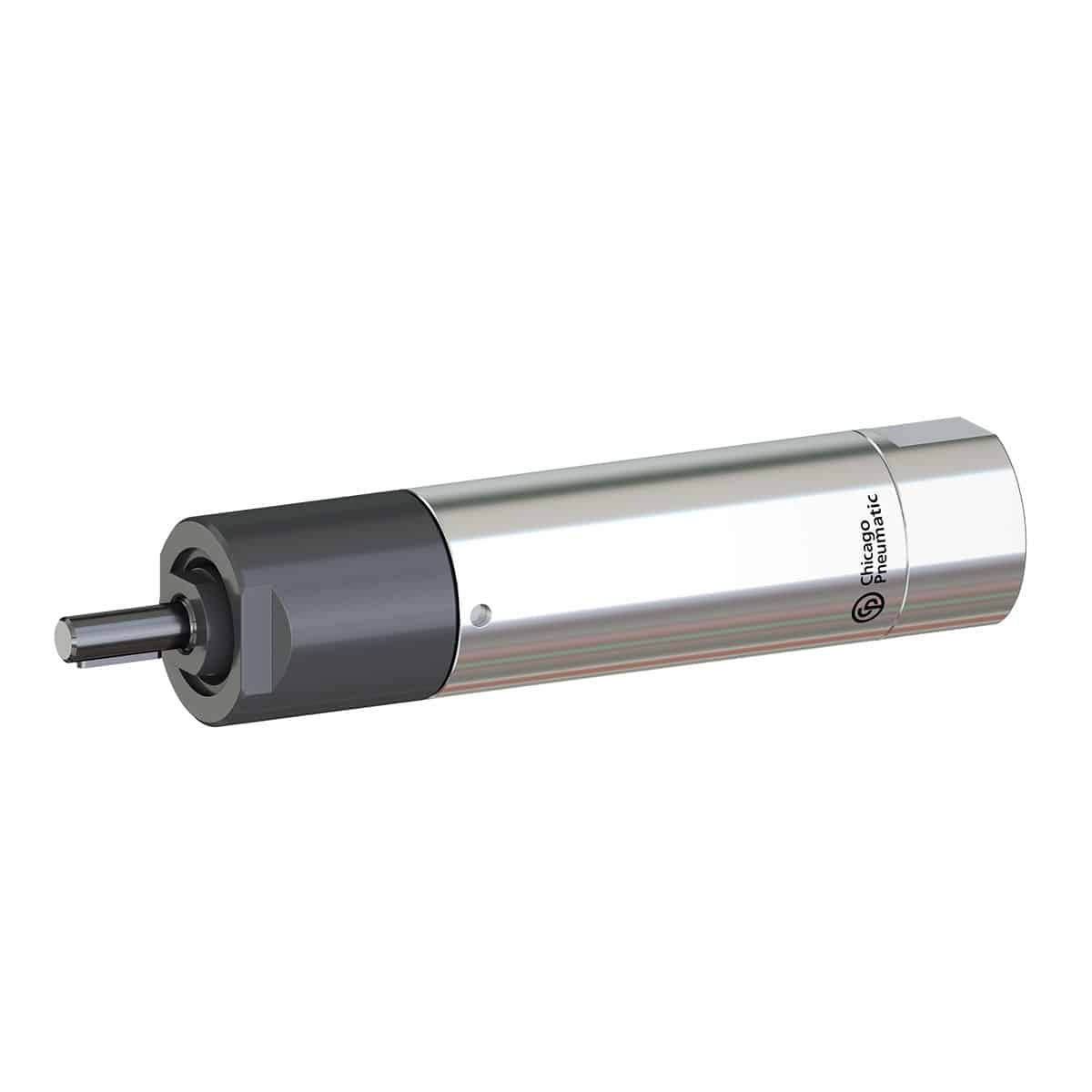

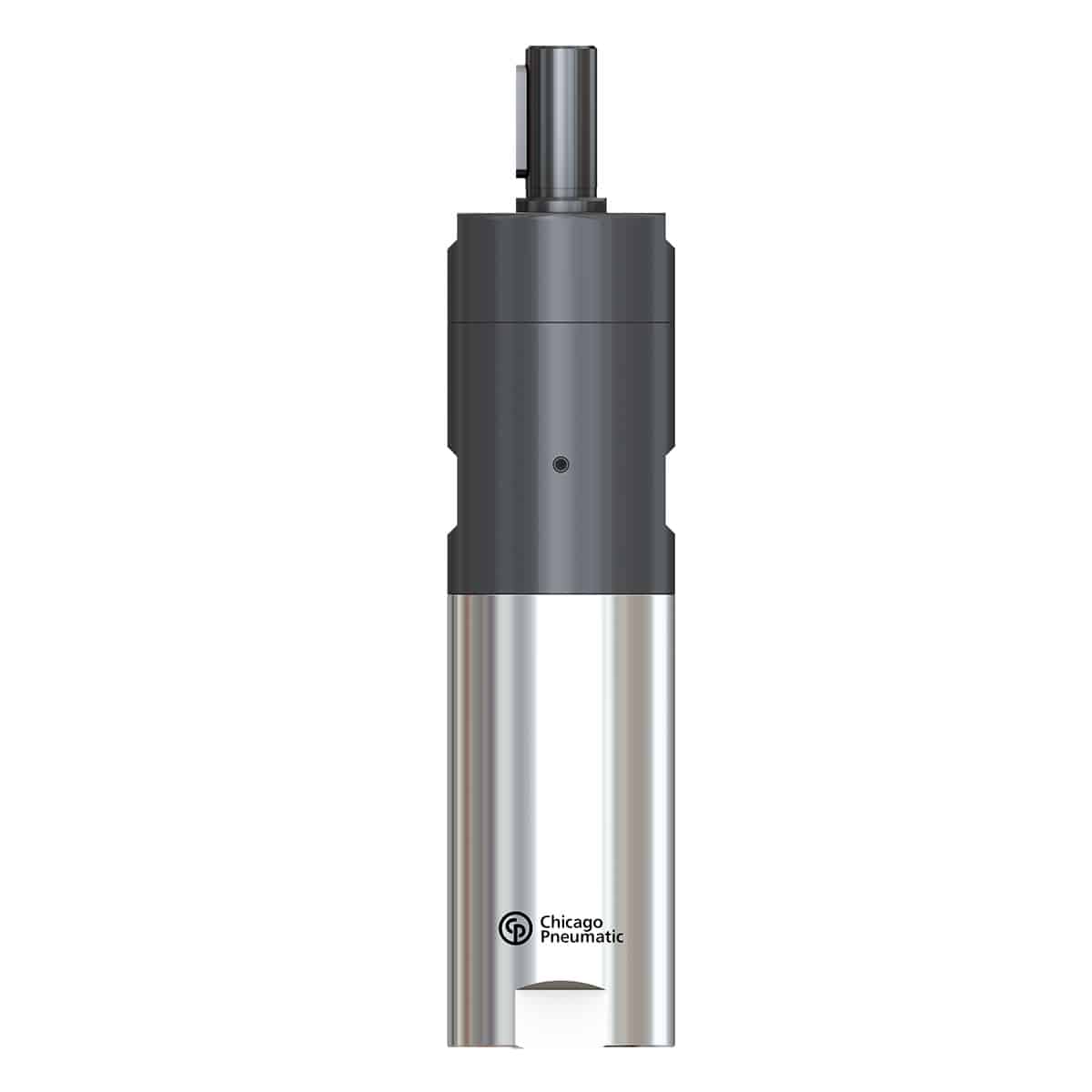

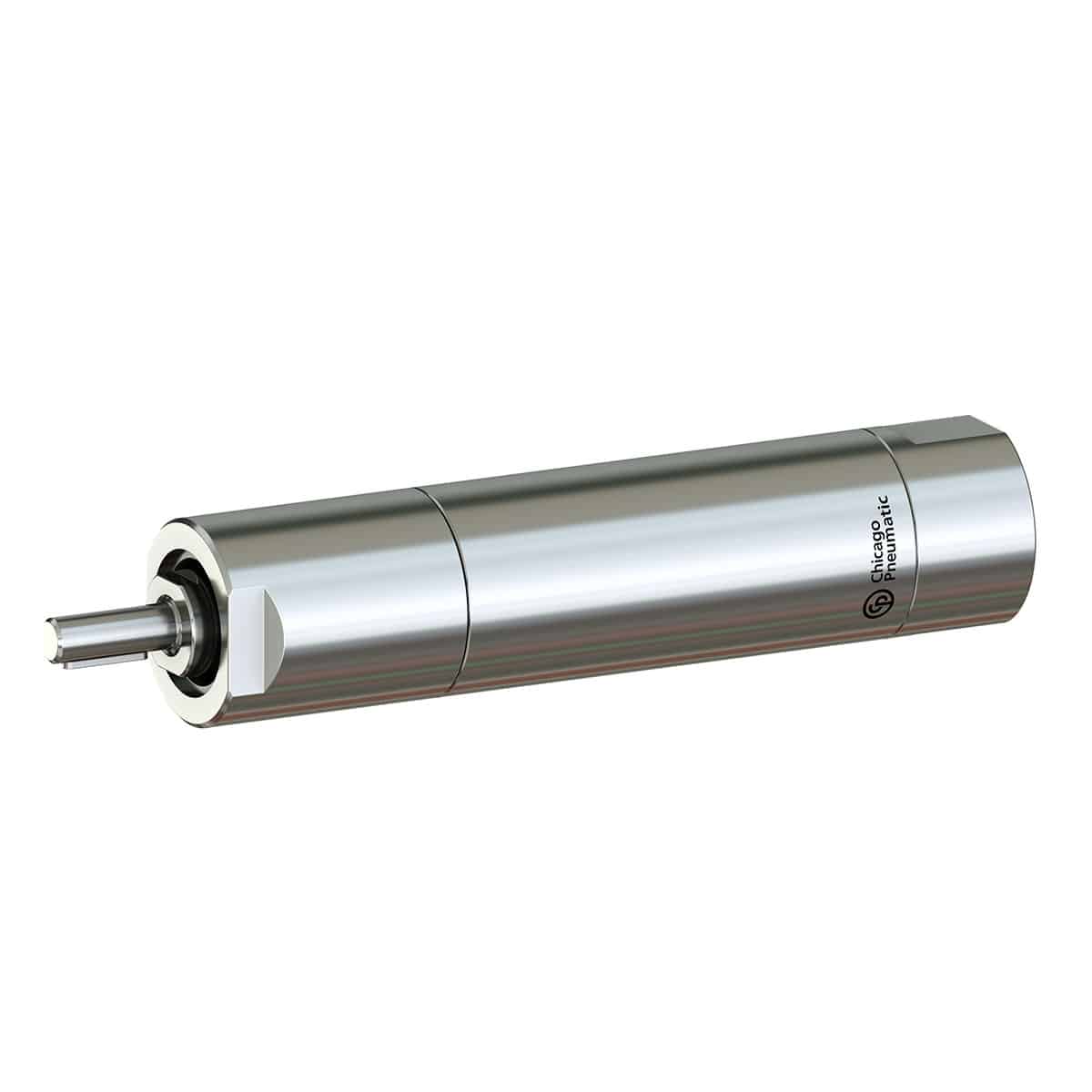

Chicago Pneumatic M180-230-K ATEX

Description M180-230-K-ATEX Standard vane motor, ATEX certified Benefits Air motors’ heavy-duty characteristics enhance a sustainable useThe Air Motors range proposes versatile solutions in any kind of industrial environmentChicago Pneumatic Air motors range offers long lasting efficiency Features Low friction design of vane and blade,A Design to sustain stall torque loading indefinitelyA Light and compact planetary gears systemA long and slim designA range of accessories proposed to facilitate customized assembly.ATEX certification for zone 2A specific low air consumption designa strong starting torque for mobility during operation Part number 2051479754 Model M180-230-K-ATEX Tool category M180 (1.83 kW / 2.45 hp) Back head coaxial no Net weight 11.1 lb Air inlet thread size 3/8″ Free speed 230 rpm IP Rating IP66 European Directives 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2014/34/EU European Standards DIN EN 4414:2010, DIN EN 1127-1:2011, DIN EN 80079-36:2016, DIN EN 80079-37:2016, DIN EN ISO 12100:2010 ATEX code II 2GD h T6 IIC T85°C ATEX certificate number 9836 4610 00  Air inlet thread type BSP ATEX yes Front nut threaded no Lubrication free no Max. Output Power 2.41 hp Output spindle 1.02″ Stainless steel no Stall torque 205 ft.lbs Torque at max. power 103 ft.lbs Mini starting torque 151 ft.lbs Air flow at max. capacity 72 cfm Spindle type Keyed shaft Shaft loading code g Reversible no
