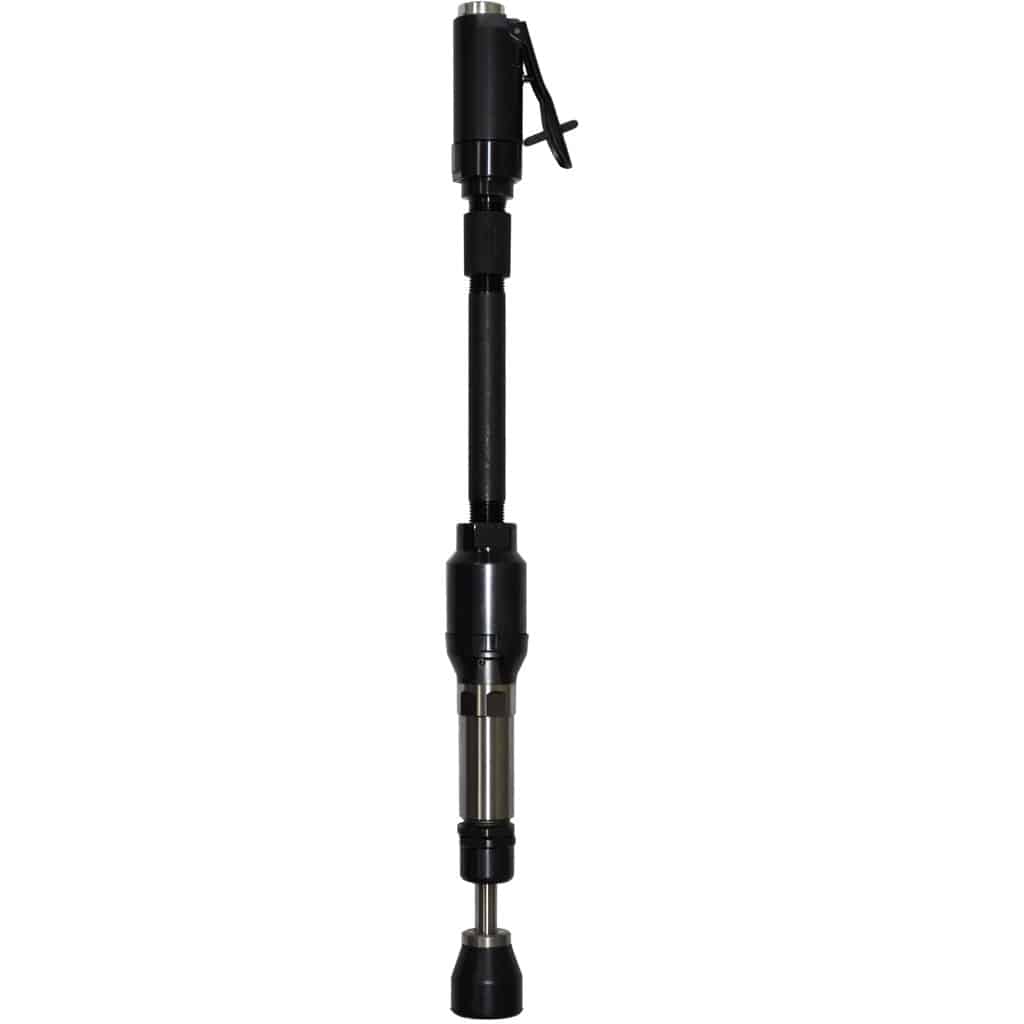

Chicago Pneumatic CP0200B22 BENCH RAMMER

Description Benefits Ideal for foundry applications Comfortable operation and high production Bench rammers used for casting sand in cylinders, large molds Features High effiency due to the high bpm Extra durability due to heat treated parts Model CP0200B22  Part number 6151618030  Length 350 mm 13,8″ Length 13,8 350  Net weight 3 kg 6.6 lb Net weight 6.6 lb 3 kg Actual air consumption 17.7 cfm 502 l/mn Actual air consumption 8.37 l/s 17.7 cfm Actual air consumption 502 l/mn 17.7 cfm Air inlet thread size 3/8 “ Min. hose size 10 mm 3/8″ Min. hose size 3/8″ 10 mm Sound pressure 95 db(A) Sound Power 106 db(A) European Sound standard ISO 15744  Sound uncertainty 3 db(A) Vibration ISO ISO-28927-6  Vibration 19.4 m/s² Vibration uncertainty (K) 6.1 m/s² Blows per minute 1020  Bore 0.859375″ 22 mm Bore 22 mm 0.859375″ Stroke 2.515625″ 64 mm Stroke 64 mm 2.515625″ Butt diameter 51 mm 2.01″ Butt diameter 2.01″ 51 mm European Directives 2006/42/EC (17/05/2006)  European Standards EN ISO 11148-4:2012
