Parker 9444370 EPF3120QIBM3MG161 Filter Element | 450 Bar

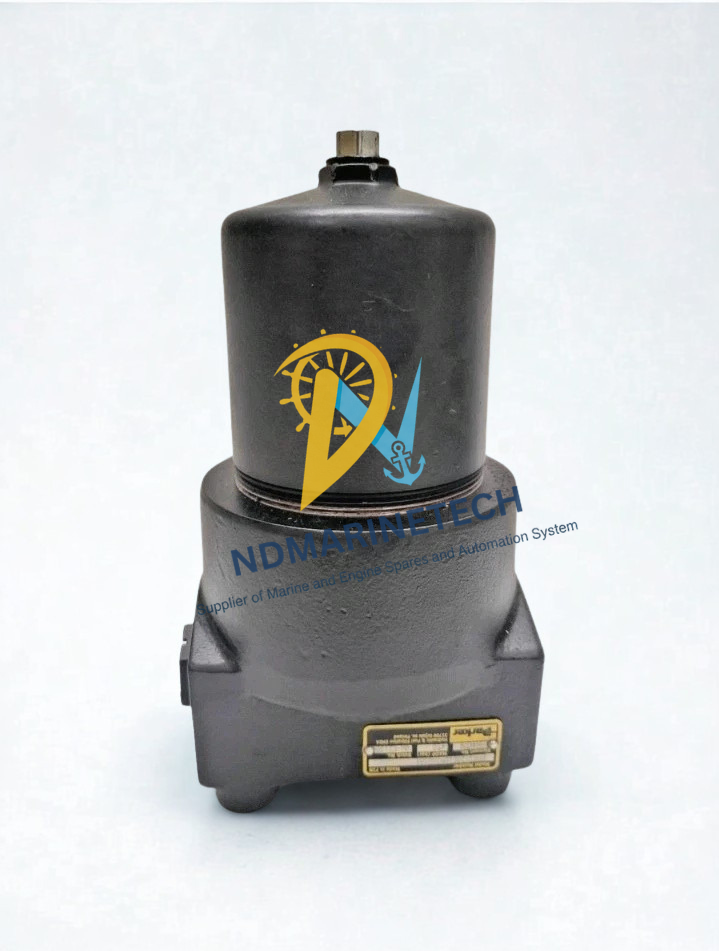

Parker EPF3120QIBM3MG161 Filter Element The Parker EPF3120QIBM3MG161 is a high-pressure filter part made for the Eco Pressure Filter (EPF) Series. It has the proprietary iprotect® design, which makes sure that only real, high-quality media is used to protect sensitive valves and actuators. This makes it a marine-grade filtering solution. This part is made for the toughest industrial and offshore conditions, with a Maximum Allowable Operating Pressure (MAOP) of 450 Bar. Specifications Feature Specification Filtration Rating 10 Micron (Nominal) Maximum Pressure (MAOP) 450 Bar (6526 PSI) Seal Material Nitrile (Buna-N) Flow Direction Outside to In Bypass Valve 3.5 Bar Length Size 1 (Standard) Compatibility Hydraulic Oils, Petroleum-based fluids, Fuel   NDMarineTechs Tips for Installation and Maintenance: Seal Lubrication: Before installation, lightly coat the nitrile seals with clean system fluid. Never install dry, as this can cause seal extrusion under 450 bar pressure. Differential Pressure Monitoring: Do not wait for the bypass to trigger. Replace the 9444370 element when the differential pressure indicator reaches 75% of the bypass setting (approx. 2.6 bar). Venting: After an element change, ensure the filter housing is properly vented. Air pockets in high-pressure lines can lead to cavitation and dieseling within the filter media, destroying the 10-micron fibers.
